Compressed air isn’t free, it’s often one of the top three energy consumers in a plant. That’s why small components that quietly protect performance deserve attention. In oil-injected compressors, the Air-Oil Separator is that unsung hero. It keeps oil where it belongs, protects downstream equipment, and directly influences energy intensity. This article explains how air-oil separators work, why they’re central to efficiency and reliability in compressed air systems, and how smart maintenance translates into measurable cost savings.
Function of air-oil separators in compressor systems
Air-oil separators play a vital role in oil-injected rotary screw and rotary vane compressors, removing lubricating oil from the compressed air stream before it travels downstream. During the compression process, oil is deliberately injected to seal, cool, and lubricate the air end. The result is a high-velocity air-oil mixture that must be separated efficiently to protect air quality and minimize oil loss.
Here’s how effective separation typically works:
- Primary Separation: Inside the separator vessel, the airflow slows and changes direction. Centrifugal force and gravity remove a large portion of entrained oil droplets.
- Coalescing Media: Remaining oil aerosols pass through a high-efficiency coalescing element where microscopic droplets collide, merge, and form larger drops that can be trapped and collected.
- Scavenge Return: Collected oil drains to the bottom of the vessel and returns to the air end via a scavenge line, reducing oil consumption and maintaining system efficiency.
When properly sized and installed, a high-quality air-oil separator can limit oil carryover in compressed air to 1–3 mg/m³, suitable for most general industrial applications before final filtration.
Two main formats are used:

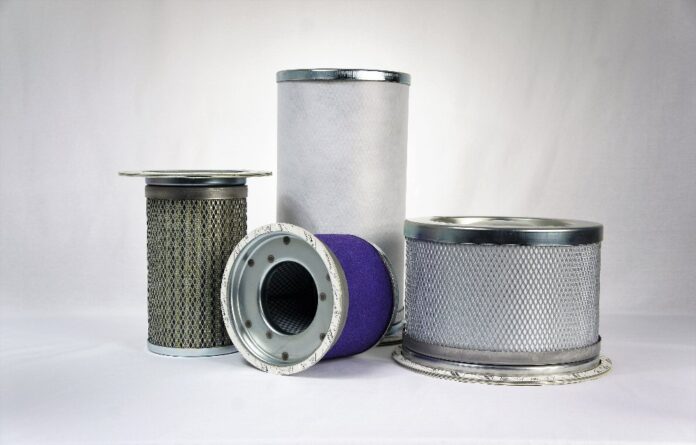

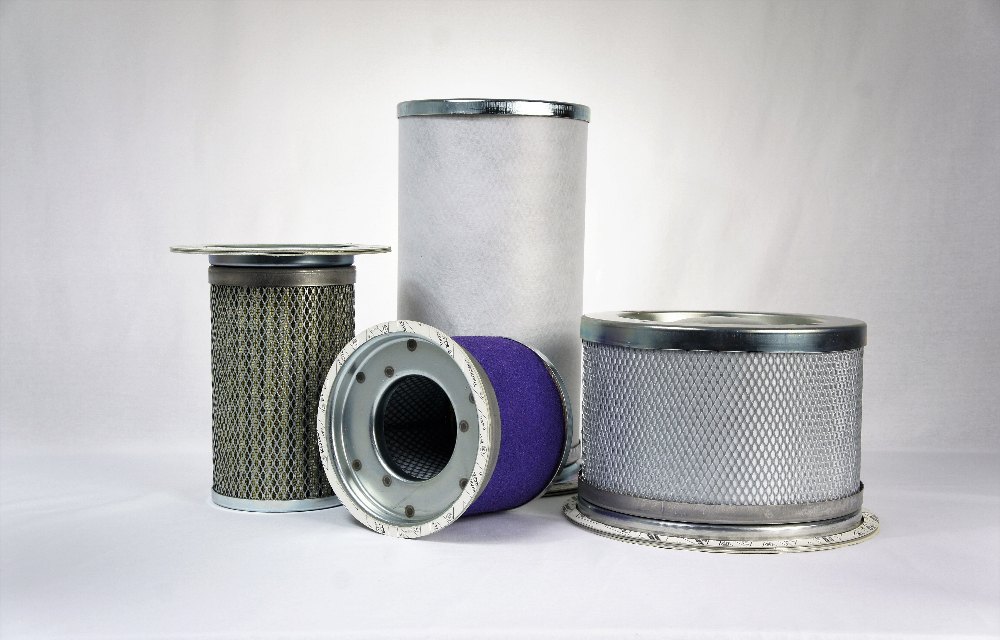

- Spin-on separator cartridges – compact and simple, common in smaller compressors.
- Built-in separator elements – housed within dedicated separator vessels, typical for larger systems.
A well-maintained separator ensures low oil carryover, minimal pressure drop (often just a few psi when new), and efficient oil recovery back into the circuit.
For premium-grade air-oil separators, maintenance parts, and expert support in optimizing compressor performance, visit Pneutech.
How separators improve overall energy efficiency
Air-oil separators influence energy in several direct and indirect ways.
- Lower pressure drop: A clean separator typically imposes a small differential pressure (ΔP). As media loads with contaminants, ΔP rises. Rule of thumb: every ~2 psi of additional pressure required can add about 1% to compressor energy. Keeping separator ΔP low prevents the control setpoint from creeping upward and avoids wasted power.
- Stable system pressure: Consistent separation preserves predictable discharge pressure, reducing unnecessary load/unload cycling or overshoot. Variable speed compressors also benefit from stable backpressure, which helps them run closer to best efficiency points.
- Optimized downstream performance: Excess oil in discharge air overloads aftercoolers, dryers, and coalescing filters. Clogged downstream filters add their own pressure drops, forcing compressors to work harder. Clean separation upstream protects these devices and keeps total system ΔP in check.
- Reduced oil losses: Efficient coalescence returns more oil to the air end, lowering top-up rates and preventing thin oil films that can increase friction and heat (both of which drive energy waste).
In short, the air-oil separator is a primary control point for pressure drop and carryover. Managing those two factors is one of the simplest paths to better energy efficiency in compressed air systems.
Extending compressor lifespan with effective separation
Efficient separation does more than clean up air, it protects the compressor itself.
- Proper lubrication loop: Returning coalesced oil maintains the correct oil volume and viscosity at the air end. Stable lubrication prevents bearing wear, gear pitting, and premature air-end rebuilds.
- Cooler, cleaner internals: Oil films help carry heat away. If too much oil exits with the air, the remaining oil runs hotter and oxidizes faster, forming varnish. Effective separation slows oxidation and protects seals and narrow passages from deposits.
- Downstream asset protection: Dryers, control valves, instruments, and pneumatic cylinders all last longer when they’re not coated in oil. Avoiding oil-fouled desiccant or sticky valve spools reduces nuisance faults that cascade into compressor abuse (frequent restarts, heat cycles, etc.).
- Reduced thermal and mechanical stress: A separator with low, steady ΔP helps maintain predictable internal pressures and temperatures, reducing trips on high-temp or high-pressure alarms that can stress components.
Over the life of a compressor, these benefits add up: fewer air-end rebuilds, fewer seal replacements, and longer intervals between major services.
Signs that indicate a separator requires replacement
Separators don’t last forever. Their coalescing media gradually loads with contaminants and loses efficiency. Indicators to watch include:
- Rising differential pressure: Compare the separator inlet vs. outlet using built-in ports or the machine’s ΔP readout. A trend from ~2–3 psi when new to 8–10 psi (or OEM threshold) is a common trigger for replacement.
- Increased oil carryover: Evidence includes oily condensate at drains, faster saturation of downstream coalescing filters, a noticeable oil odor, or visible sheen in piping and receivers.
- Higher oil consumption: More frequent oil top-ups point to poor capture and return. Check the scavenge line for restrictions and verify correct routing and orifice size.
- Temperature or trip anomalies: Elevated discharge temperatures, unexpected load/unload patterns, or high-pressure alarms can be linked to a clogged separator element.
- Hours-based end of life: Many OEMs specify replacement at 4,000–8,000 operating hours depending on oil type, duty cycle, and environment. If the machine runs dusty or hot, intervals shorten.
Any one of these signals merits inspection. Multiple signs together usually mean it’s time to change the separator and verify the scavenge circuit is clear.
Impact of poor separation on system reliability
Letting separation performance slide affects much more than air quality.
- Dryer and filter failures: Oil-coated heat exchangers and desiccant reduce drying capacity and spike dew points. Saturated filters collapse or bypass, pushing contamination further downstream.
- Sticky valves and instruments: Oil mists gum up I/P converters, regulator diaphragms, and control valves. Process upsets and machine faults follow.
- Environmental and safety risks: Oil-laden condensate requires proper treatment. Excessive oil carryover raises the hazard of slippery floors at condensate points and can create aerosols no one wants to breathe.
- Compressor trips and downtime: A plugged separator drives up ΔP and internal temperature. Safety valves may lift: alarms trigger: production pauses while maintenance scrambles.
- Product quality issues: In food, pharma, electronics, and paint applications, oil contamination can scrap batches or cause rework. Once customers notice, the cost isn’t just maintenance, it’s reputation.
Reliability is a chain. The air-oil separator is an early link: if it fails, stress propagates through the entire compressed air system.
Maintenance schedules supporting peak performance
A disciplined maintenance plan keeps separators efficient and the whole compressed air system healthy.
Recommended practices:
- Daily/weekly: Check separator differential pressure and trending. Listen for new airflow noises that can hint at internal restrictions. Verify oil level with the machine at rest per OEM procedure.
- Monthly/quarterly: Inspect and replace intake air filters as needed, dust loading shortens separator life. Check the scavenge line and check valve for blockages or kinks. Look for oil at drains and examine downstream filter elements for early saturation.
- 2,000–4,000 hours: Replace oil and oil filter per oil type and duty. Perform a visual on hoses and seals: confirm proper ventilation and cooling airflow around the compressor.
- 4,000–8,000 hours: Replace the air-oil separator element (or spin-on cartridge) following OEM torque and gasket instructions. Reset baseline ΔP after installation for future trending.
- Annually: Consider oil analysis (acid number, viscosity, particle count) to right-size intervals. Inspect aftercoolers and dryers: clean heat exchangers to maintain low overall ΔP.
Operating environment matters. Hot ambients, dusty processes, or intermittent heavy loads can justify shorter intervals. Always follow the compressor manufacturer’s guidance first, then tailor based on your data.
